Water Filling Machine PET Plastic Bottle 200ml-2000ml
Bottled Water Filling Line3 in 1 filling Machinery can provide whole producing and packaging solutions for water,pure water,mineral water,spring water,drinking water etc. Equipment Advantage:
1. It adopts technology of air conveyor direct connect with bottle infeed starwheel to instead of screw and conveyor.it is easier and more simple to change over bottle size.
2.Adopt neck handling technology to convey bottles.there is no need to adjust the height of equipment and only need to change some spare parts.

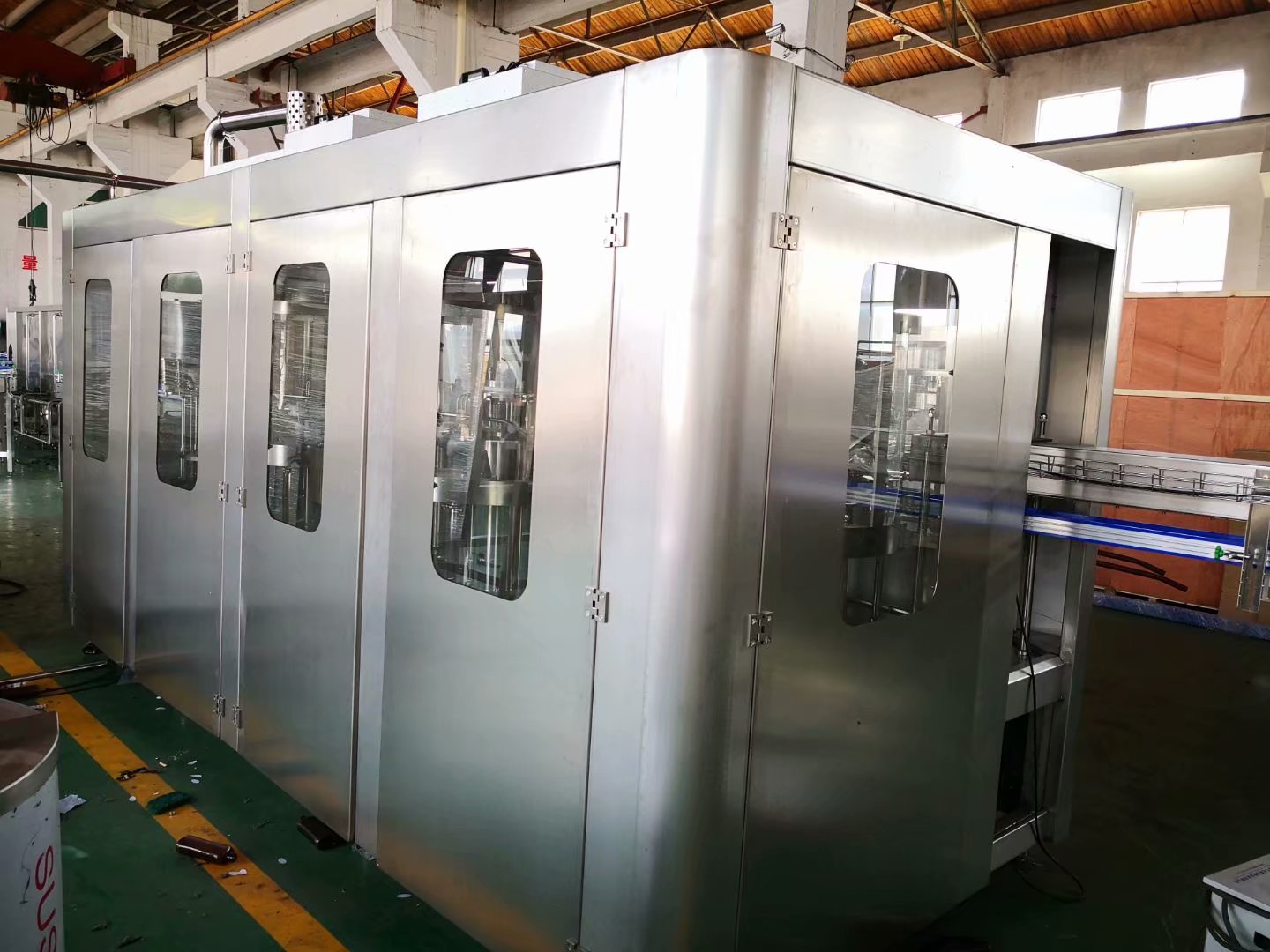

3. By 3-in-1 monoblock ,the bottle goes through washing,filling and capping with little abrasion,and the transferring is stable,bottle changing is easier.
4. Specially designed stainless steel bottle gripper dose not contact the thread parts of the bottle neck,avoiding the second contamination. 5.High speed and mass flow filling valve ensures the high filling speed and exact fluid level.
6.parts contacting liquid are all made of excellent stainless steel or food grade engineering plastic.the electric system is from international brand and achieves the national food hygienic standard.

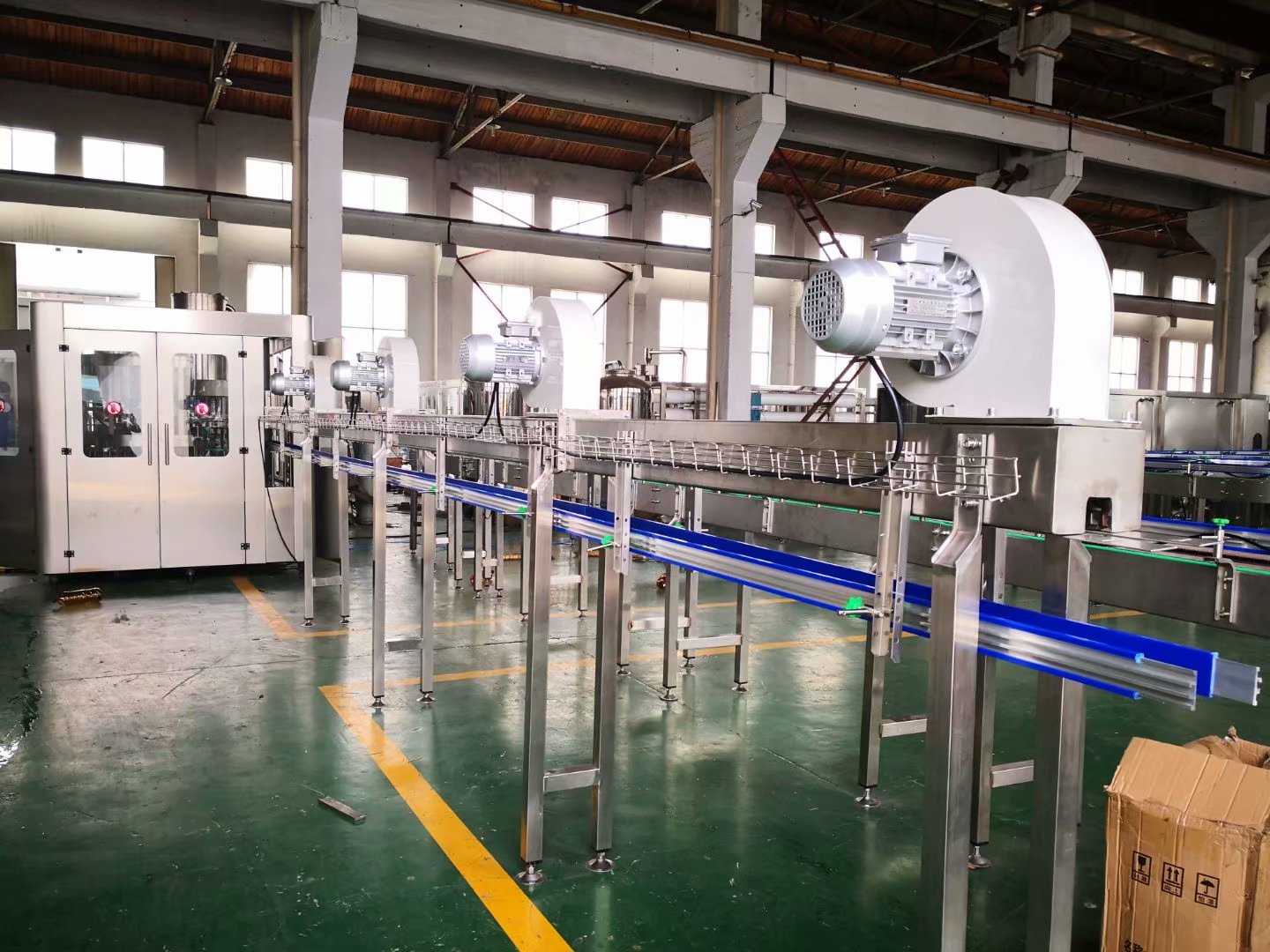

01 - Air Conveyor.
- Air conveyor is fixed on the floor, with fan installed on the top.
- Air filter is positioned at every entrance of air fan, to prevent dust blown into bottles.
- Bottles are held on the neck in the conveyor and transported into filling machine by blowing power.
- All are made of stainless steel SUS 304 /316.
- Rack made by high quality carbon steel welded.

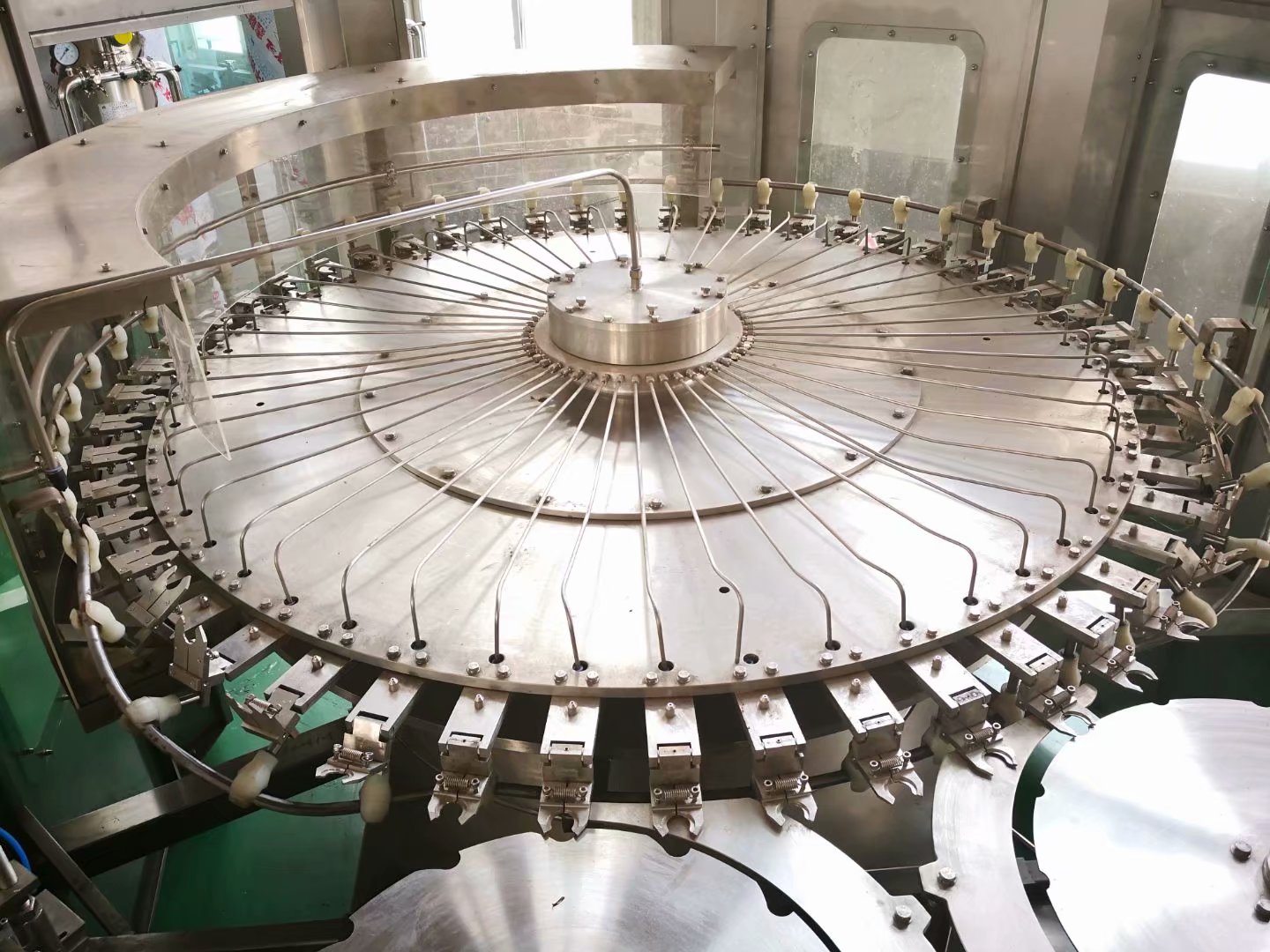

02 - Washing Parts.
- Into bottle way is air conveyor direct connection with bottle dial.
- All 304/316 stainless steel rinse heads, water spray style inject design, more save water consumption and more clean.
- 304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing.
- 304/316 stainless steel washing pump make the machine more durable.

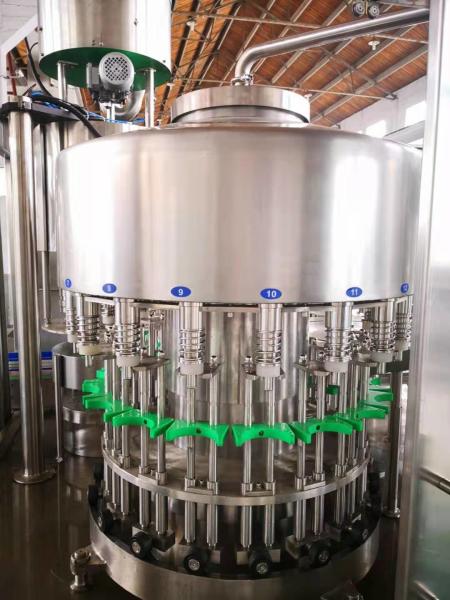

03 - Filling Parts.

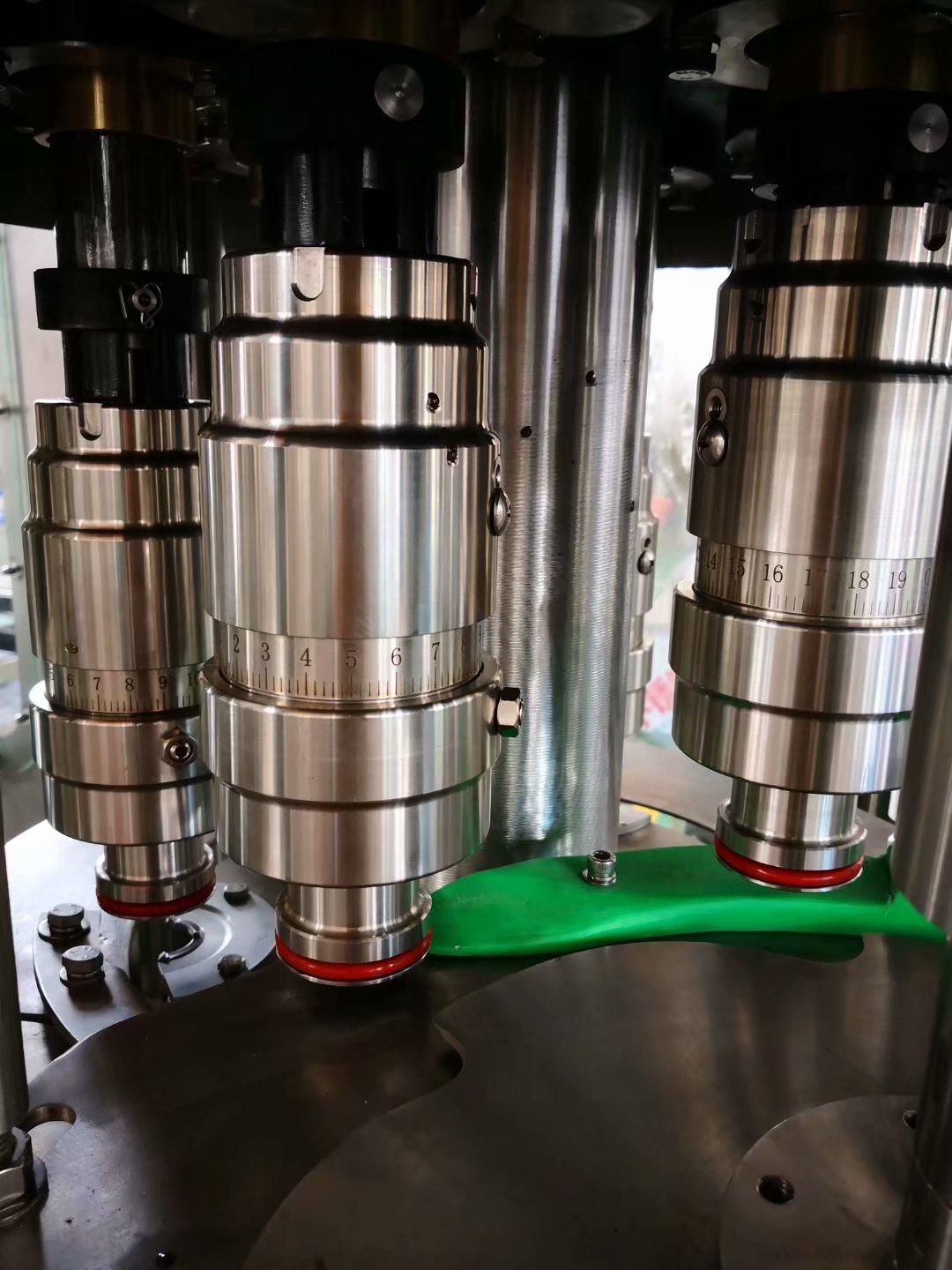

- 304/316 Stainless steel high precision filling nozzle
- Filling volume adjustable in fine rank, same liquid level after filling
- All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
- 304/316 stainless steel filling pump
- Efficient spray nozzle rinse thoroughly and save water for flushing

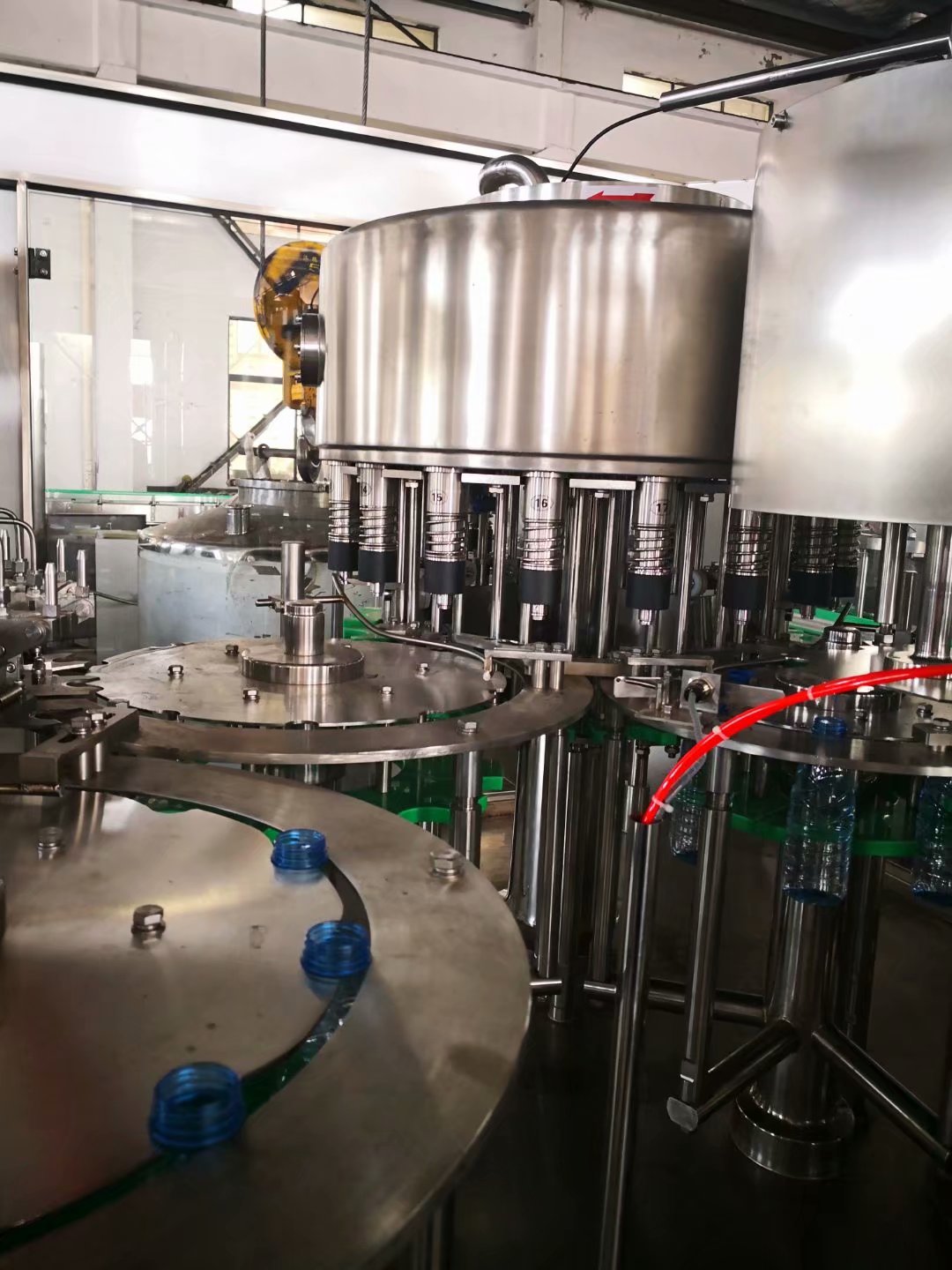

04 - Capping Parts.
- Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during
capping
- All 304/316 stainless steel construction
- No bottle no capping
- Automatic stop when lack of bottle
- Capping effect is stable and reliable, Defective rate ≤0.2%
05 - Flat Conveyor.
- Energy saving. High efficient. Adapt to customer factory layout
- Special lubrication system, keep products clean, health, safety
- Extended service life
- Electric eyes design keep whole line running safety and quickly
- Overload protection mechanism to effectively ensure the safety of the machine
Technical parameter:
| Model | XGF 18-18-6 | XGF 24-24-8 | XGF 32-32-8 | XGF 40-40-12 | XGF 50-50-12 | XGF 60-60-15 | XGF 72-72-18 | XGF 80-80-18 |
| Capacity(500ml/BPH) | 6000 | 8000 | 12000 | 16000 | 20000 | 25000 | 30000 | 38000 |
| Suitable bottle shape and size | Both round of square bottle, 220ml-2000ml, Dia: 50-108mm, Height: 150-340mm |
| Compressed air pressure | 0.3-0.7MPa |
| Bottle washing medium | Sterile water |
| Washing pressure | 0.25MPa |
| Main motor | 2.2 | 3 | 5.5 | 7.5 | 7.5 | 9.5 | 10.5 | 12.5 |
| Dimension(mm) | 2500*2000 *2300 | 2700*2100 *2300 | 2970*2260 *2700 | 3780*2800 *2700 | 4850*3300 *3200 | 5050*3500 *3200 | *3200 | 5250*3600 *3200 |
| Weight(KG) | 3500 | 4500 | 6500 | 8500 | 7500 | 8500 | 9500 | 11500 |
